High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing
  • High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing
  • High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing

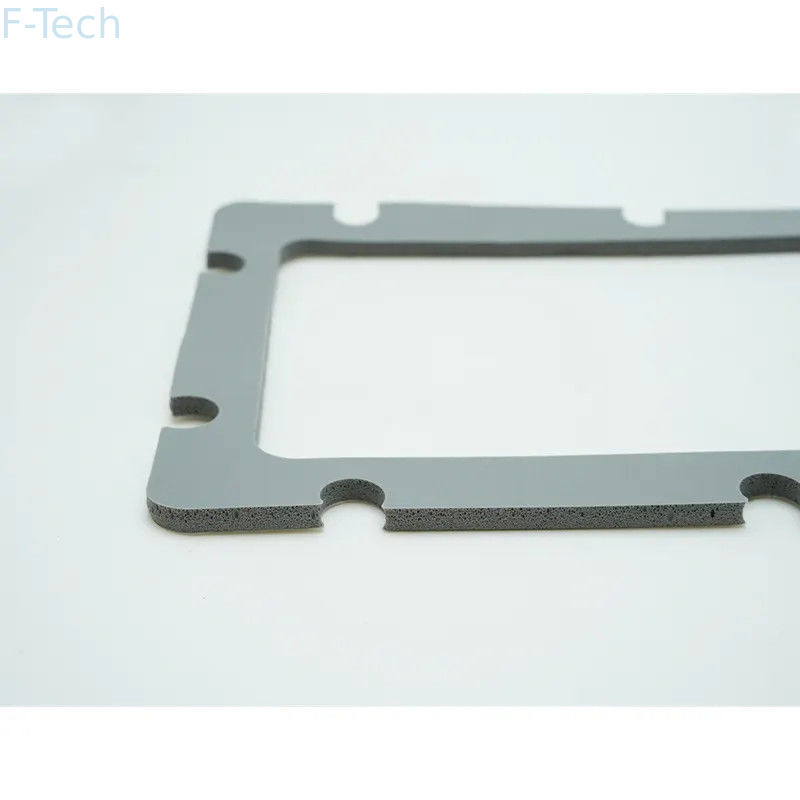

High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing

High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number BPS-02
Product Details
Material:
Customized
Sized:
Customized
Tape:
Double-sided Adhesive
Requirements For Flame Retardant Grade:
Customized
Appearance Requirements:
Smooth Surface, No Damage, Scratches, Lack Of Material, Obvious Defects And Other Defects
Highlight:

High Temperature Silicone Foam Rubber Gasket

,

Low Temperature Silicone Foam Rubber Gasket

,

Battery Pack Sealing Silicone Foam Rubber Gasket

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
USD 45/PC
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description

High and Low Temperature Resistant Silicone Foam Rubber Gasket for Battery Pack Sealing

Products Description
  1. Grade: silicone foam material meets RoHS grade certifications.
  2. Sample cost: if be our stock size sample, be free;if be a new one, the sample cost depends on the product.
  3. Sample time: 1 day for stock sample;5-7 days for customized sample.
  4. Sample quantity: below 2 pcs.
  5. Surface: smooth surface.
  6. Extra service: cut and punch into the required shape and size.

F-TECH-FSR370 stands out as a low-stress silicone foamed material with remarkable characteristics. This silicone-based material boasts a low density while displaying exceptional resistance to compression set. Unlike conventional carbon-based foam materials, F-TECH-FSR370 exhibits outstanding performance across a wide temperature range (-55 to 200 °C), excels in flame retardancy (V-0 rating), and possesses remarkably low smoke density and toxicity. Furthermore, this material showcases excellent durability against aging and weathering, rendering it suitable for various applications such as shock absorption, cushioning, support, sound insulation, protection, insulation, and fireproofing.



Main Features



  1. Excellent flame retardancy and fire resistance;
  2. Excellent compression set resistance and creep resistance;
  3. Excellent heat and cold resistance, continuous operation from -55°C to 200°C;
  4. Good insulation, and green environmental protection
  5. * Wide operating temperature – silicone foam has a temperature range of -67°F to 392°F (-55°C to 200°C).
    * Water sealing – closed cell products offer good water sealing with relatively low compressive forces.
    * Dust sealing – open cell and closed-cell products can be used for sealing out dust with low compressive forces.
    * Compression set resistance – silicone foam offers excellent compression set resistance (ability to rebound to original
    thickness).
    * UV and ozone resistance – silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long-term performance.
    * UL gasket – most silicone foam products are UL 94 flame rated for the gasket.
Specification
SN TEST UNITES Testing standards Technical indicators
1 Density g.cm-3 ASTM D 1056 0.42±0.04
2 Hardness kPa ASTM D 1056 110 ± 20
3 Compression set % ASTM D 1056 @100℃ ≤ 5.0
4 Tensile strength MPa ASTM D412-16 ≥ 0.4
5 Elongation % ASTM D412-16 ≥ 85
6 Water absorption % ASTM D 570 ≤ 5.0
7 Environmental testing / RoHS,REACH,ELV OK
8 Flame retardant / UL94-2013 V-0
9 Low temperature bending / ASTM D 1056 -55℃ OK
10 Dielectric strength kV/mm ASTM D149-09 ≥ 3.5
11 Volume resistivity Ω·cm ASTM D257-14 ≥ 1.0*1014
12 Thermal conductivity W/(m·K) ASTM C518-17 0.09±0.01



Other details

tem
ISO9001 IATF 16949:2016 CertifiedEPDM/NBR/CR/VMQ/FKM Oil resistance silicone rubber gasket for Automotive and industrial
Material
EPDM, NBR, SBR, NR, Silicone(VMQ), Neoprene(CR), HNBR, XNBR, FKM, FFKM, FVMQ, FLAS, PTFE, PU, ECO, IIR, ACR, etc...
Silicone: High Tensile Silicone, Food Grade Silicone, Medical Grade Silicone, High Clear Silicone, etc.
If there is any special requirements on material performance, such as temperature resistant, resists deformation, compression set,
tensile strength etc... Foam material is also available. If you do not know what kind of material to use, pls advise us what is
the usage of these parts? Then we can make some recommend for you.
Certificate
IATF 16949:2016 / ISO 9001:2015 / ISO 45001:2018 / ISO 14001:2015 /REACH/ROHS/MSDS/LFGB
Drawing Format
.stp / .step / .igs /.stl /.dwg / .pdf
Color
Almost all PMS colors available for Silicone (VMQ); Mostly black for other rubber materials, if other colors are required, please
indicate it on inquiry.
Parameters
Inch, centimeter, millimeter, etc.
Function
Industrial parts /daily supply / Automotive/ Medical device, etc...
Surface Treatment
Matte, Common polishing, Mirror polishing, Texture, Laser Engraving, Power Coating (Painting), Printing, Segmented colors, Mixed
colors, etc.
Mold Material
No. 50 steel, No. 45 steel, P20, 8407, H13, 718H, etc.
Mold Precision
If no special request, apply to ISO3302:2014 standards, class 2.
Mold Life-cycle
100,000-500,000 shots.
Packing
Pack in bulk / poly bag / bubble bag / color box.
Sample
Available. One cavity sample mold or 3D printing.
Price Tip
The price shown above is just for reference, final actual price depends on your design, material request, surface treatment, order
qty, package request, etc.



Brief Introduction
Subject Description
Silicone rubber It is a high-performance elastomer with exceptionally high and low-temperature properties. Silicone moulded and die-cut gaskets can withstand within a temperature range of -75° F to +500° F. The low-temperature flexibility of silicone is unmatched by any other elastomer.
EPDM rubber It is a copolymer of ethylene and propylene. EPDM rubber is one of the most popular, versatile materials available. EPDM is known for its excellent ozone, sunlight, and heat resistance and exceptionally good weather aging properties. Its distinctive ability to stabilize colour and resist harsh weather conditions makes it an ideal choice for outdoor applications.
Nitrile rubber It is also known as Buna-N, is the most widely used elastomer for seals and gaskets. Its properties provide superior resistance to petroleum-based fluids, hydraulic fluids, gasoline, alkalis and acids. Nitrile is the polymer of choice for applications requiring oil and solvent resistance.
SBR rubber It is a synthetic polymer, commonly known as “Red Rubber”. SBR is a copolymer of styrene and butadiene and has properties similar to Natural Rubber. SBR is highly resilient and commonly used because it is cost-efficient and has the ability to deform to uneven flange edges. SBR (red rubber) exhibits excellent impact strength, high tensile strength, abrasion resistance, and heat resistance, and sustains flexibility at lower temperatures.



Compressive stress curve

High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing 0

Application

High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing 1

Common Industry Applications

  • Telecommunications outdoor enclosures (environmental gasket)
  • Portable data acquisition (gaskets and cushioning)
  • Indoor lighting (dust gasket, UL 94V-0)
  • Outdoor LED lighting (weather gasket, long life, UL listed)
  • Asset tracking (environmental gasket, low compression set)
  • Instrumentation (vibration dampening)
  • Electronics (touch screen gaskets, cushioning)
Package & Delivery

High And Low Temperature Resistant Silicone Foam Rubber Gasket For Battery Pack Sealing 2
It is a non-dangerous good. Store it in a cool, dry place below 27°C.
